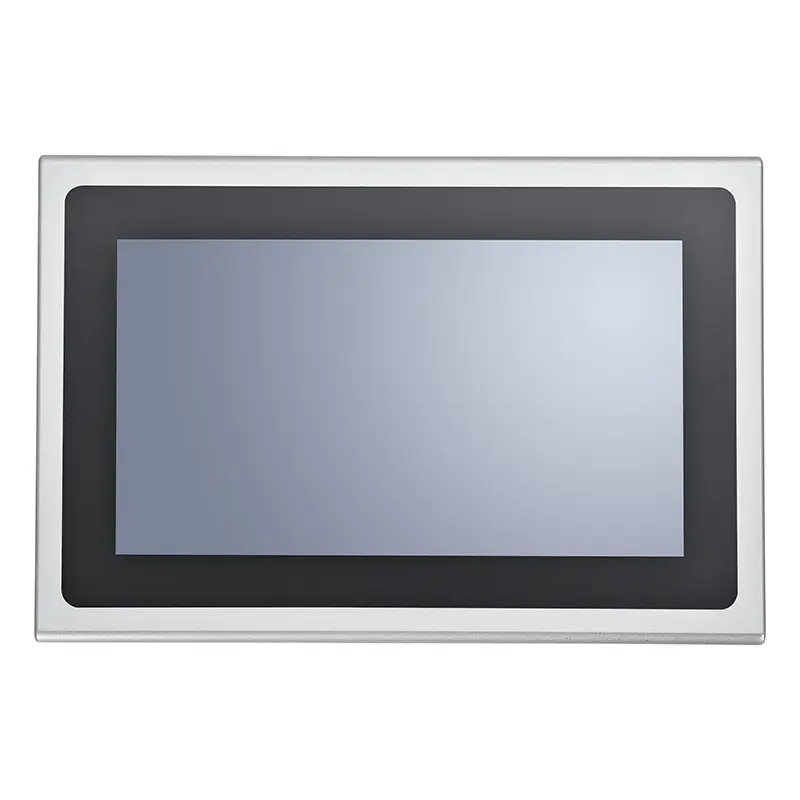

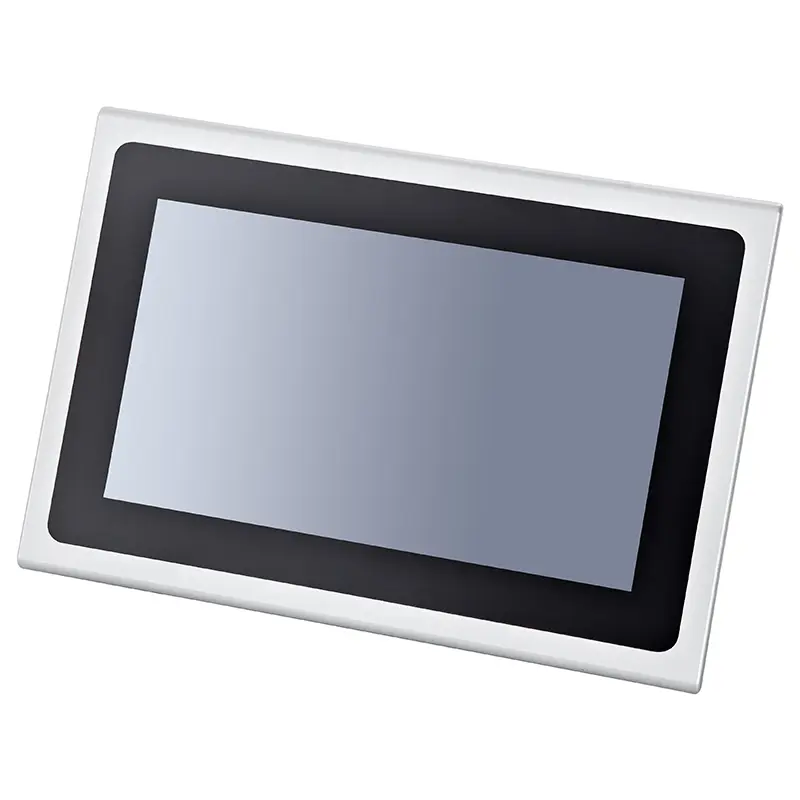

HMI panel HP11X-AC07

https://www.visnal-imaging.com/web/image/product.template/75/image_1920?unique=6cbcbaf
  • 7" TFT LCD display with a resolution of 1024 x 600
  • The front panel complies with IP65 protection rating, ensuring stability and robustness

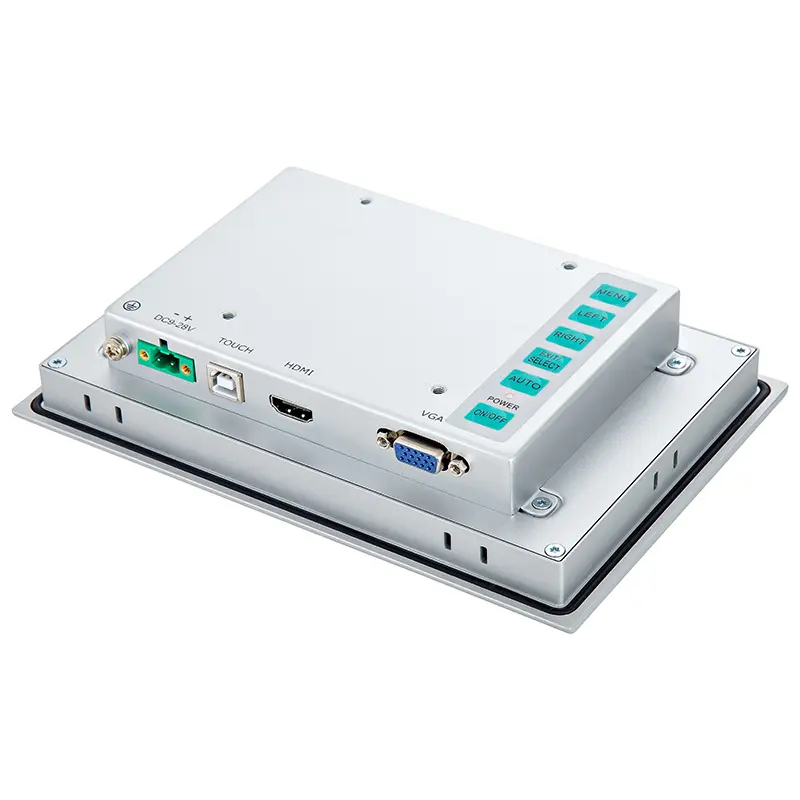

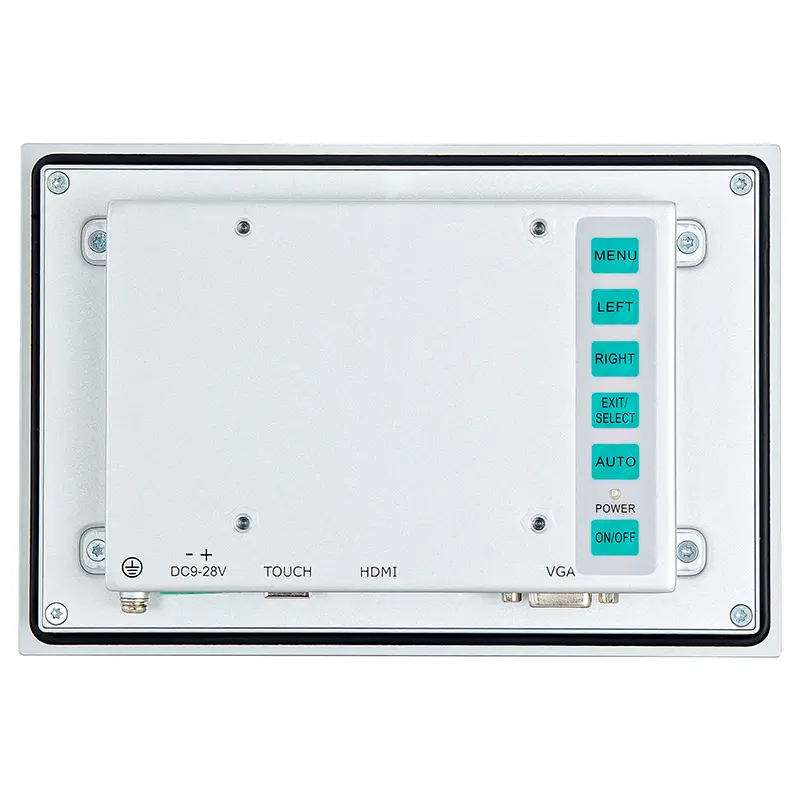

  • Supports VGA and HDMI interfaces
  • Capacitive Touchscreen
  • 9~28V power input
  • Supports panel mount, wall mount, desktop mount or VESA arm mount installation

860.00 zł 860.0 PLN 860.00 zł Tax Excluded

Not Available For Sale

  • Size (inches)
  • Native resolution
  • Touch panel type

This combination does not exist.

This content will be shared across all product pages.

Contact Us
Size (inches): 7"
Native resolution: 800x480
Touch panel type: Capacitive

Terms and Conditions
Leadtime: Contact us  [email protected]

Product Parameters

LCD Screen Screen type 7" TFT-LCD
Resolution 800 × 480
Viewing angle (CR >= 10) -70~70° (H), -50~70° (V)
Maximum color 16.2M
Luminance 350 cd/m²
Contrast ratio 500:1
Backlight type TFT-LCD
Backlight lifespan 35,000 h
Touch Screen Touch type 10-Point Capacitive Touchscreen
Interface type USB 2.0
Transmittance >85%
Surface hardness Mohs 7H
Overview Display interface VGA, HDMI

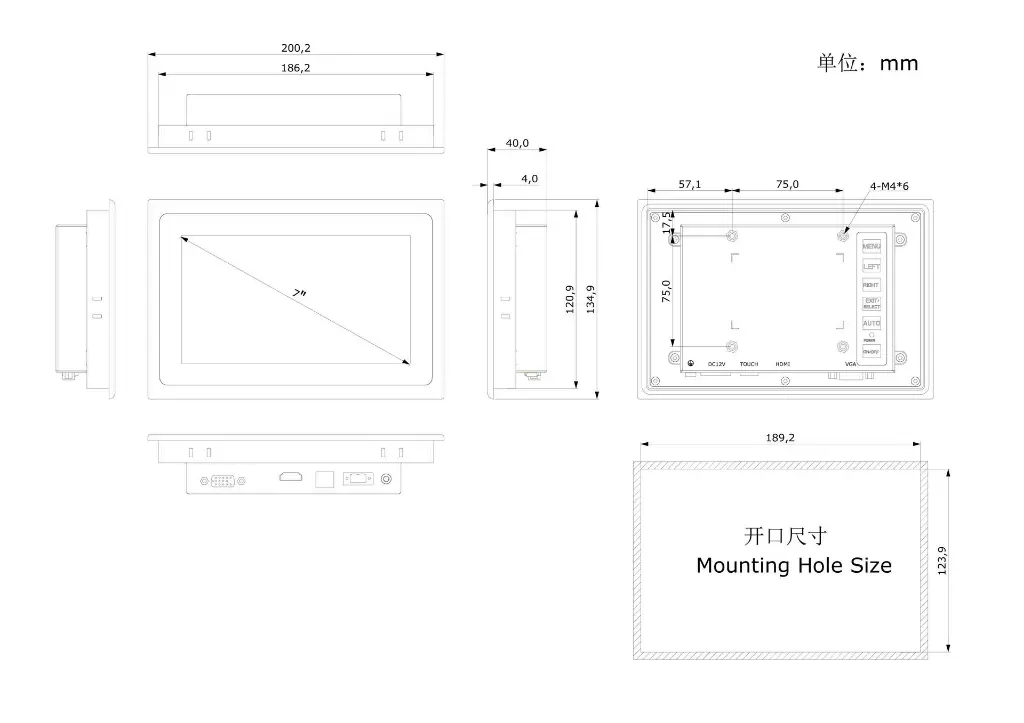

Size 200.2 × 134.9 × 40.0 mm
System OS -
Environmental Parameters Operating temperature 0°C ~ 60°C
Storage temperature -20°C ~ 70°C
Storage humidity 10 ~ 90% @ 30°C (non-condensing)
Vibration resistance 5~500 Hz, 1 Grms (operating, random)
Protection level Front panel rated IP65
